Home > Resistors > MResist High-Load

MResist High-Load

For high-load applications, wire-wound cement resistorswith a continuous load capacity of 25 watt are a good option.

Conductor Material

COPPER-NICKEL WIRE

Core| Potting

CERAMICS| CEMENT

Resistance

1,0 OHM 1,2 OHM 1,5 OHM 1,8 OHM 2,2 OHM 2,7 OHM 3,3 OHM 3,9 OHM 4,7 OHM 5,6 OHM 6,8 OHM 8,2 OHM 10 OHM 12 OHM 15 OHM 18 OHM 22 OHM 27 OHM 33 OHM 39 OHM 47 OHM 56 OHM

Wattage

25 WATT

Temperature Coefficient

±300 PPM/°C

Inductivity

0,36 µH 0,40 µH 0,45 µH 0,49 µH 0,52 µH 0,58 µH 0,78 µH 0,80 µH 0,86 µH 1,0 µH 1,2 µH 1,3 µH 1,4 µH 1,6 µH 1,7 µH 2,1 µH

Dielectric Strength

800 VOLT AC

Temperature range

-30°C/-22°F...+220°C/+428°F

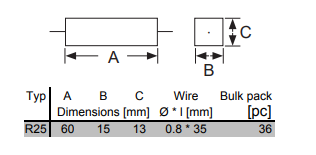

Dimensions

L60XH13XZ15 MM

Darstellung

EmpfehlungItem No.nameNewestEmpfehlungprice acendingSort by price descending

MResist high-load 25W

22 variants available

Details

Item number

Resistance

Wattage

Dimensions

Connectors

Retail Price

R25-1,0 MResist high-load 25W:

Resistance1,0 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,58 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

1,0 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,58 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-1,2 MResist high-load 25W:

Resistance1,2 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,40 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

1,2 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,40 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-1,5 MResist high-load 25W:

Resistance1,5 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,52 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

1,5 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,52 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-1,8 MResist high-load 25W:

Resistance1,8 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,36 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

1,8 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,36 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-2,2 MResist high-load 25W:

Resistance2,2 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,45 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

2,2 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,45 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-2,7 MResist high-load 25W:

Resistance2,7 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,49 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

2,7 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,49 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-3,3 MResist high-load 25W:

Resistance3,3 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,0 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

3,3 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,0 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-3,9 MResist high-load 25W:

Resistance3,9 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,78 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

3,9 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,78 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-4,7 MResist high-load 25W:

Resistance4,7 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,80 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

4,7 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,80 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-5,6 MResist high-load 25W:

Resistance5,6 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity0,86 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

5,6 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 0,86 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-6,8 MResist high-load 25W:

Resistance6,8 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,0 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

6,8 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,0 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-8,2 MResist high-load 25W:

Resistance8,2 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,2 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

8,2 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,2 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-10 MResist high-load 25W:

Resistance10 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,2 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

10 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,2 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-12 MResist high-load 25W:

Resistance12 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,4 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

12 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,4 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-15 MResist high-load 25W:

Resistance15 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,3 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

15 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,3 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-18 MResist high-load 25W:

Resistance18 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,7 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

18 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,7 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-22 MResist high-load 25W:

Resistance22 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,0 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

22 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,0 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-27 MResist high-load 25W:

Resistance27 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,3 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

27 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,3 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-33 MResist high-load 25W:

Resistance33 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,2 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

33 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,2 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-39 MResist high-load 25W:

Resistance39 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,7 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

39 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,7 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-47 MResist high-load 25W:

Resistance47 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity1,6 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

47 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 1,6 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

R25-56 MResist high-load 25W:

Resistance56 Ohm ±5 %25 WattL60xH13xZ15 mmWire sizeØ0,80xL35 mm±300 ppm/°CInductivity2,1 µH800 Volt AC-30°C/-22°F...+220°C/+428°F KupferNickel Draht Keramik | Zement

56 OHM 25 WATT L60XH13XZ15 MM Ø0,80XL35 MM ±300 PPM/°C 2,1 µH 800 VOLT AC -30°C/-22°F...+220°C/+428°F KUPFERNICKEL DRAHT KERAMIK | ZEMENT

Delivery time for customary quantities: 1-3 working days

Details

1,99 €

• Add Item to Favorites
• Edit Item Lists

• About us
  • Company
  • Environment protection
• Info
  • Reviews & Catalogs
  • News & Events
  • Downloads
  • Choosing the optimal Capacitor
  • Selection of the legal coil wire
  • Selection of the legal coil core
• Contact
  • Contact
  • Contact persons
  • Mundorf Dealers / Distributors
• Legal
  • Data Protection Declaration
  • Legal Disclosures
  • General Terms and Conditions and Client Information



---

Welcome to Mundorf!

Please choose your home country to see all your relevant dealers around you.

Bitte wählen Sie jetzt Ihr Herkunftsland, damit Sie ganz einfach ihren zuständigen Händler finden.

---

Please choose... / Bitte wählen al-Dschumhuriyya al-'Arabiyya as-Suriyyaal-Gaza'iral-Gumhuriyya al-lubnaniyyaal-Imarat al-'Arabiyyat al-Muttahidaal-Mamlaka al-Maghribiyaal-Mamlakah al-'Arabiyah as-Su'udiyahAotearoa · New ZealandArgentinaAustraliaBalgarijaBamladesBelarusBelgien · België · BelgiqueBharat · IndiaBrasilBrunei DarussalamCanadaCeská republikaChileColombiaCosta RicaDanmarkDeutschlandEestiÉire · Irelandel-Dschumhuriyya it-TunisiyyaEllasEspañaFranceGreat BritainGuatemalaHanguk · KoreaHrvatskaIndonesiaIranIslandItaliaJisra'el · Isra'ilKenyaKosova · KOCOBOKypros · KibrisLatvijaLëtzebuerg · LuxembourgLiechtensteinLietuvaMagyarországMakedonijaMalaysiaMaltaMartiniqueMéxicoMoçambiqueMoldovaNederlandNederlandse AntillenNigeriaNihon · JapanNorgeÖsterreichPakistanPanamaPeruPilipinasPolskaPorinetia FaraniPortugalPrathet ThaiPuerto RicoRéunionRomâniaRossijaSamoaSan MarinoSchweiz · Suisse · Svizzera · SvizraSingaporeSlovenijaSlovenskoSolomon IslandsSrbijasri lamka · ilankaiSuid-Afrika · South AfricaSuomiSverigeSwazilandTanzaniaTrinidad and TobagoTürkiyeUgandaUkrajinaUnited KingdomUSAVanuatuVenezuelaViet NamViti · FijiXianggang · Hong KongZhong Guó · ChinaZhonghuá Mínguó · Táiwan

Choose and close window / Auswahl bestätigen

    Array
(
    [site] => audio
    [language] => en
    [level_1] => shop
    [slevel_1] => Resistors
    [slevel_2] => MResist_Cement
    [level_5] =>
    [level_4] =>
    [level_3] =>
    [level_2] =>
)
  Array
(
    [input_auto_customer_no] =>
    [input_auto_user_name] =>
    [input_auto_user_email] =>
)
