> > FERON Zero-Ohm

FERON Zero-Ohm

Coil Core
Conductor Material
Winding Fixation
Inductivity
DC Resistance
Wire cross section
Coil Body Type
Dimensions
Darstellung
neu
MCoil BN125 Zero-Ohm-Core
5 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
BN125-15 MCoilZero-Ohm (baked) : successor: VN125-15
15 mH ±5 %0,36 OhmL84xH76xZ70 mm1,23mm² · AWG 16 | 1,25mm
Delivery time:
Details
Price on request
BN125-18 MCoil BN125 Zero-Ohm-Core: Zero-Ohm-Coil, 1,25mm baked varnish wire
18 mH ±5 %0,44 OhmL84xH76xZ70 mm1,23mm² · AWG 16 | 1,25mm
Delivery time for customary quantities: 1-3 working days
Details
Price on request
BN125-22 MCoil BN125 Zero-Ohm-Core: Zero-Ohm-Coil, 1,25mm baked varnish wire
22 mH ±5 %0,47 OhmL84xH76xZ70 mm1,23mm² · AWG 16 | 1,25mm
Delivery time: 1-2 weeks
 Details
Price on request
BN125-27 MCoil BN125 Zero-Ohm-Core: Zero-Ohm-Coil, 1,25mm baked varnish wire
27 mH ±5 %L96xH86xZ84 mm1,23mm² · AWG 16 | 1,25mm Null-Ohm
Delivery time: 1-2 weeks
 Details
Price on request
BN125-33 MCoil BN125 Zero-Ohm-Core: Zero-Ohm-Coil, 1,25mm baked varnish wire
33 mH ±5 %0,60 OhmL96xH86xZ84 mm1,23mm² · AWG 16 | 1,25mm
Delivery time: 1-2 weeks
 Details
Price on request

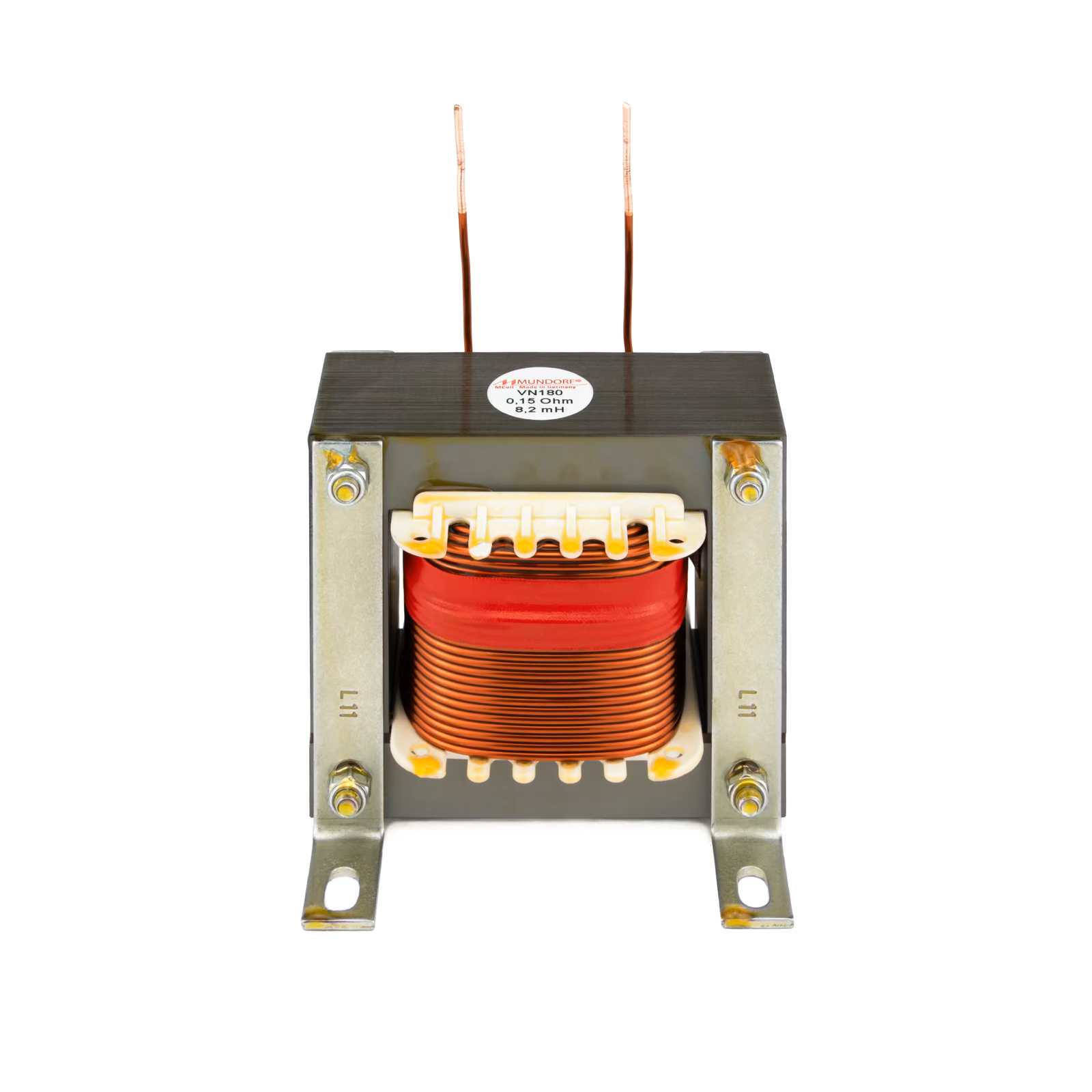

VN390-3.0-1
MCoilFERON zero-ohm
17 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VN390-1,0 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
1,0 mH ±5 %0,02 OhmL106xH93xZ87 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
229,90 €
VN390-1,2 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
1,2 mH ±5 %0,02 OhmL106xH93xZ87 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
234,90 €
VN390-1,5 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
1,5 mH ±5 %0,02 OhmL106xH93xZ87 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
239,90 €
VN390-1,8 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
1,8 mH ±5 %0,02 OhmL106xH93xZ87 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
249,90 €
VN390-2,2 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
2,2 mH ±5 %0,02 OhmL106xH93xZ87 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
259,90 €
VN390-2,7 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
2,7 mH ±5 %0,02 OhmL106xH93xZ87 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
269,90 €
VN390-3,3 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
3,3 mH ±5 %0,03 OhmL130xH115xZ97 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
329,90 €
VN390-3,9 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
3,9 mH ±5 %0,03 OhmL130xH115xZ97 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
354,90 €
VN390-4,7 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
4,7 mH ±5 %0,03 OhmL130xH115xZ97 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
379,90 €
VN390-5,6 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
5,6 mH ±5 %0,04 OhmL130xH115xZ97 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
409,90 €
VN390-6,8 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
6,8 mH ±5 %0,04 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
469,90 €
VN390-8,2 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
8,2 mH ±5 %0,04 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
499,90 €
VN390-10 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
10 mH ±5 %0,05 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
529,90 €
VN390-12 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
12 mH ±5 %0,05 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
559,90 €
VN390-15 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
15 mH ±5 %0,05 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
589,90 €
VN390-18 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
18 mH ±5 %0,05 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
619,90 €
VN390-22 MCoilFERON zero-ohm: wire3,90 mm (resin-soaked)
22 mH ±5 %0,05 OhmL150xH131xZ121 mm11,95mm² · AWG 6.5 | 3,90mm
Delivery time: 1-2 weeks
 Details
649,90 €
MCoil CFN14 Zero-Ohm-Core
6 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
CFN14-2,7 MCoil CFN14 Zero-Ohm-Core: Zero-Ohm-Coil, 28mm foil
2,7 mH ±5 %0,10 OhmL84xH76xZ70 mm1,96mm² · AWG 14 | 1,58mm
Delivery time: 1-2 weeks
 Details
Price on request
CFN14-3,3 MCoil CFN14 Zero-Ohm-Core: Zero-Ohm-Coil, 28mm foil
3,3 mH ±5 %0,12 OhmL84xH76xZ70 mm1,96mm² · AWG 14 | 1,58mm
Delivery time: 1-2 weeks
 Details
Price on request
CFN14-3,9 MCoil CFN14 Zero-Ohm-Core: Zero-Ohm-Coil, 28mm foil
3,9 mH ±5 %0,13 OhmL84xH76xZ70 mm1,96mm² · AWG 14 | 1,58mm
Delivery time: 1-2 weeks
 Details
Price on request
CFN14-4,7 MCoil CFN14 Zero-Ohm-Core: Zero-Ohm-Coil, 28mm foil
4,7 mH ±5 %0,15 OhmL84xH76xZ70 mm1,96mm² · AWG 14 | 1,58mm
Delivery time: 1-2 weeks
 Details
Price on request
CFN14-5,6 MCoil CFN14 Zero-Ohm-Core: Zero-Ohm-Coil, 28mm foil
5,6 mH ±5 %0,17 OhmL84xH76xZ70 mm1,96mm² · AWG 14 | 1,58mm
Delivery time: 1-2 weeks
 Details
Price on request
CFN14-6,8 MCoil CFN14 Zero-Ohm-Core: Zero-Ohm-Coil, 28mm foil
6,8 mH ±5 %0,19 OhmL84xH76xZ70 mm1,96mm² · AWG 14 | 1,58mm
Delivery time: 1-2 weeks
 Details
Price on request

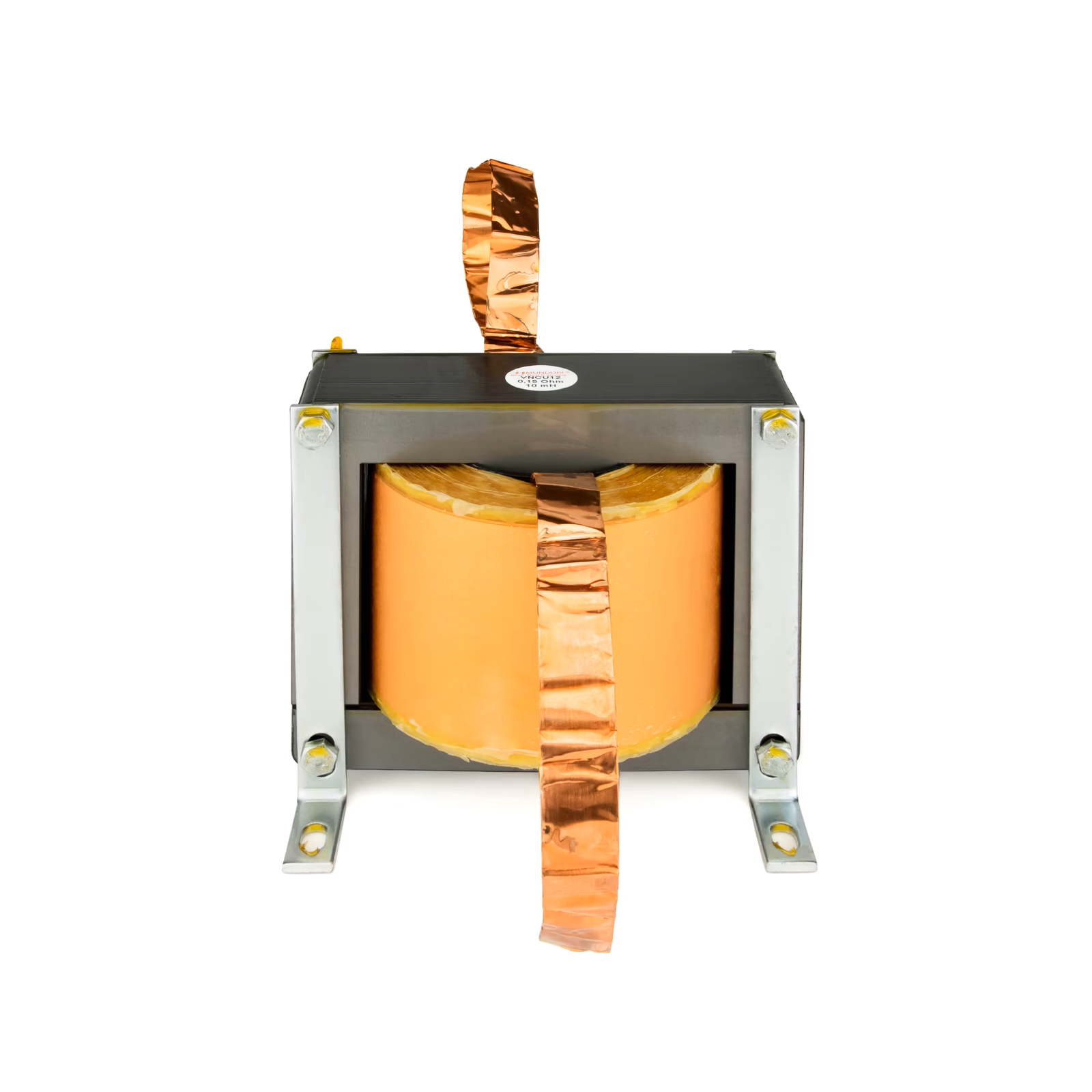

VNCU9-22
MCoil FERON Zero-Ohm Foil Copper Foil Paper
7 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VNCU9-6,8 MCoil FERON Zero-Ohm Foil Copper Foil Paper: PureCopper.PaperResin
6,8 mH ±5 %0,05 OhmL150xH131xZ121 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
399,90 €
VNCU9-8,2 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
8,2 mH ±5 %0,06 OhmL150xH131xZ121 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
419,90 €
VNCU9-10 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
10 mH ±5 %0,07 OhmL150xH131xZ121 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
439,90 €
VNCU9-12 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
12 mH ±5 %0,08 OhmL150xH131xZ121 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
459,90 €
VNCU9-15 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
15 mH ±5 %0,09 OhmL150xH131xZ121 mm7,00mm AWG9 | 2,99mm
Delivery time:
Details
479,90 €
VNCU9-18 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
18 mH ±5 %0,1 OhmL150xH131xZ121 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
509,90 €
VNCU9-22 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
22 mH ±5 %0,11 OhmL150xH131xZ121 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
539,90 €
MCoil BN140 Zero-Ohm-Core
14 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
BN140-1,0 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
1,0 mH ±5 %0,07 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-1,2 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
1,2 mH ±5 %0,08 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-1,5 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
1,5 mH ±5 %0,08 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-1,8 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
1,8 mH ±5 %0,10 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-2,2 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
2,2 mH ±5 %0,12 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-2,7 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
2,7 mH ±5 %0,12 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-3,3 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
3,3 mH ±5 %0,14 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-3,9 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
3,9 mH ±5 %0,16 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-4,7 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
4,7 mH ±5 %0,17 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-5,6 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
5,6 mH ±5 %0,19 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-6,8 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
6,8 mH ±5 %0,21 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-8,2 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
8,2 mH ±5 %0,23 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-10 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
10 mH ±5 %0,26 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request
BN140-12 MCoil BN140 Zero-Ohm-Core: Zero-Ohm-Coil, 1,40mm baked varnish wire
12 mH ±5 %0,29 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time: 1-2 weeks
 Details
Price on request

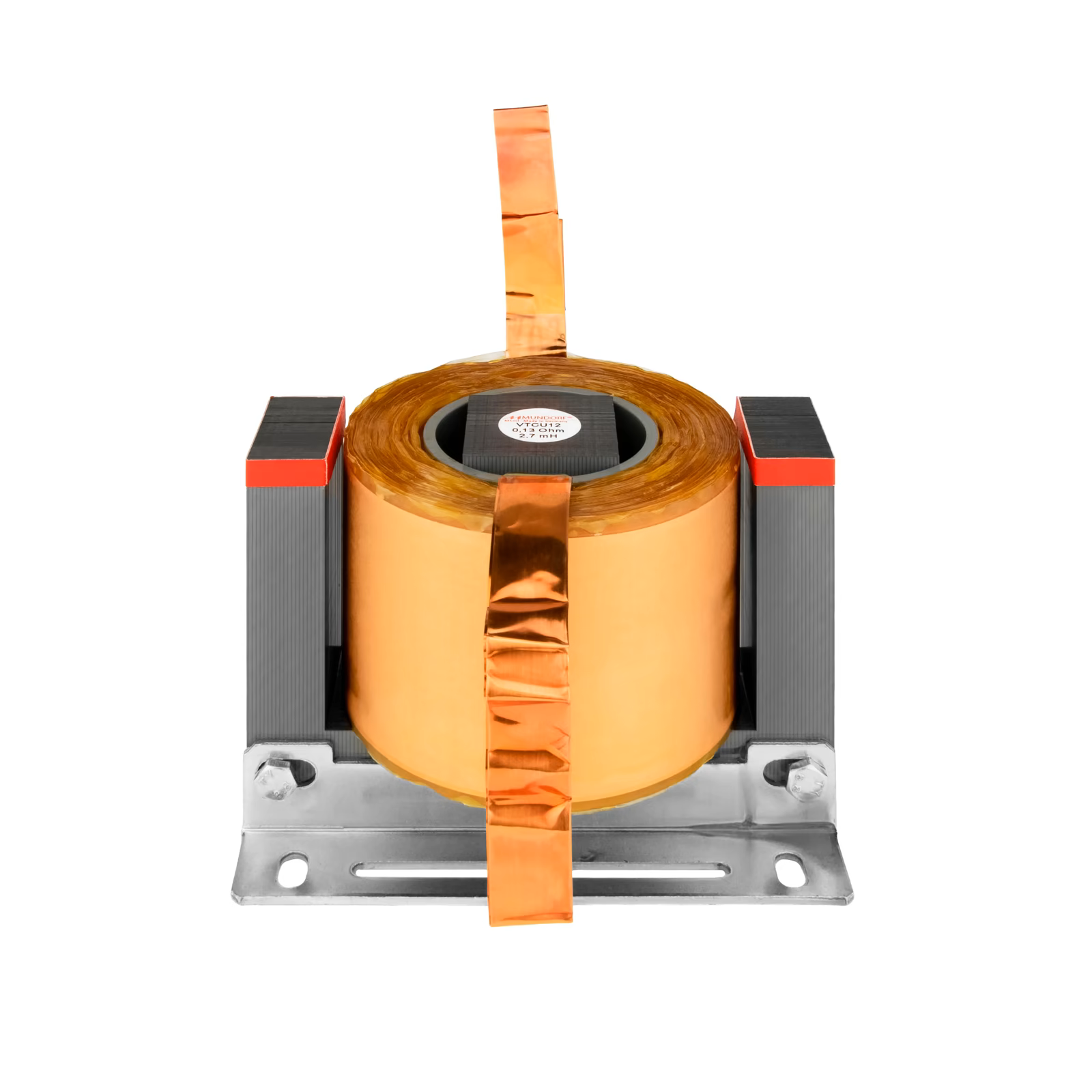

VNCU12-10
MCoil FERON Zero-Ohm Copper Foil Paper
7 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VNCU12-3,3 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
3,3 mH ±5 %0,08 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
194,90 €
VNCU12-3,9 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
3,9 mH ±5 %0,09 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
199,90 €
VNCU12-4,7 MCoil FERON Zero-Ohm Copper Foil Paper: PureCopper.PaperResin
4,7 mH ±5 %0,10 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
204,90 €
VNCU12-5,6 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
5,6 mH ±5 %0,11 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
209,90 €
VNCU12-6,8 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
6,8 mH ±5 %0,13 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
214,90 €
VNCU12-8,2 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
8,2 mH ±5 %0,14 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
224,90 €
VNCU12-10 MCoil FERON Zero-Ohm Foil: PureCopper.PaperResin
10 mH ±5 %0,15 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
234,90 €
VN300-4.7_komplGetr
MCoilFERON zero-ohm
19 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VN300-1,0 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
1,0 mH ±5 %0,02 OhmL96xH86xZ84 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
149,90 €
VN300-1,2 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
1,2 mH ±5 %0,02 OhmL96xH86xZ84 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
154,90 €
VN300-1,5 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
1,5 mH ±5 %0,02 OhmL96xH86xZ84 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
159,90 €
VN300-1,8 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
1,8 mH ±5 %0,03 OhmL96xH86xZ84 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
164,90 €
VN300-2,2 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
2,2 mH ±5 %0,03 OhmL96xH86xZ84 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
169,90 €
VN300-2,7 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
2,7 mH ±5 %0,03 OhmL106xH93xZ87 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
189,90 €
VN300-3,3 MCoilzero-ohm / wire3.00mm: wire3,00 mm (resin-soaked)
3,3 mH ±5 %0,04 OhmL106xH93xZ87 mm7,07mm² · AWG 9 | 3,00mm
Delivery time:
Details
199,90 €
VN300-3,9 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
3,9 mH ±5 %0,04 OhmL106xH93xZ87 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
209,90 €
VN300-4,7 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
4,7 mH ±5 %0,05 OhmL106xH93xZ87 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
219,90 €
VN300-5,6 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
5,6 mH ±5 %0,05 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
279,90 €
VN300-6,8 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
6,8 mH ±5 %0,06 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
299,90 €
VN300-8,2 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
8,2 mH ±5 %0,07 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
319,90 €
VN300-10 MCoilzero-ohm / wire3.00mm: wire3,00 mm (resin-soaked)
10 mH ±5 %0,08 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time:
Details
339,90 €
VN300-12 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
12 mH ±5 %0,09 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
359,90 €
VN300-15 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
15 mH ±5 %0,10 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
379,90 €
VN300-18 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
18 mH ±5 %0,11 OhmL130xH115xZ97 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
399,90 €
VN300-22 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
22 mH ±5 %0,11 OhmL150xH131xZ121 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
459,90 €
VN300-27 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
27 mH ±5 %0,13 OhmL150xH131xZ121 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
489,90 €
VN300-33 MCoilFERON zero-ohm: wire3,00 mm (resin-soaked)
33 mH ±5 %0,14 OhmL150xH131xZ121 mm7,07mm² · AWG 9 | 3,00mm
Delivery time: 1-2 weeks
 Details
519,90 €
neu
MCoil CFN12 Zero-Ohm-Core
7 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
CFN12-8,2 MCoil CFN12 Zero-Ohm-Core: Zero-Ohm-Coil, 44mm foil
8,2 mH ±5 %0,14 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
Price on request
CFN12-10 MCoil CFN12 Zero-Ohm-Core: Zero-Ohm-Coil, 44mm foil
10 mH ±5 %0,15 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time: 1-2 weeks
 Details
Price on request
CFN12-12 MCoilCFzero-ohm: 44mm*70µmfoil
12 mH ±5 %0,17 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
Price on request
CFN12-15 MCoil CFN12 Zero-Ohm-Core: Zero-Ohm-Coil, 44mm foil
15 mH ±5 %0,19 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
Price on request
CFN12-18 MCoil CFN12 Zero-Ohm-Core: Zero-Ohm-Coil, 44mm foil
18 mH ±5 %0,22 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
Price on request
CFN12-22 MCoil CFN12 Zero-Ohm-Core: Zero-Ohm-Coil, 44mm foil
22 mH ±5 %0,25 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
Price on request
CFN12-27 MCoil CFN12 Zero-Ohm-Core: Zero-Ohm-Coil, 44mm foil
27 mH ±5 %0,28 OhmL106xH93xZ87 mm3,08mm² · AWG 12 | 1,98mm
Delivery time: 1-2 weeks
 Details
Price on request
neu BN
MCoil BN180 Zero-Ohm-Core
15 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
BN180-2,2 MCoilBVzero-ohm: wire 1.80mm (baked)
2,2 mH ±5 %0,07 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-2,7 MCoilBVzero-ohm: wire 1.80mm (baked)
2,7 mH ±5 %0,08 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-3,3 MCoilBVzero-ohm: wire 1.80mm (baked)
3,3 mH ±5 %0,09 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-3,9 MCoilBVzero-ohm: wire 1.80mm (baked)
3,9 mH ±5 %0,10 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-4,7 MCoil BN180 Zero-Ohm-Core: wire 1.80mm (baked)
4,7 mH ±5 %0,11 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-5,6 MCoilBVzero-ohm: wire 1.80mm (baked)
5,6 mH ±5 %0,12 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-6,8 MCoilBVzero-ohm: wire 1.80mm (baked)
6,8 mH ±5 %0,13 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time for customary quantities: 1-3 working days
Details
Price on request
BN180-8,2 MCoilBVzero-ohm: wire 1.80mm (baked)
8,2 mH ±5 %0,15 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
Price on request
BN180-10 :
10 mH ±5 %0,16 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
BN180-12 :
12 mH ±5 %0,17 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
BN180-15 :
15 mH ±5 %0,22 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
BN180-18 :
18 mH ±5 %0,25 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
BN180-22 :
22 mH ±5 %0,29 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
BN180-27 :
27 mH ±5 %0,32 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
BN180-33 :
33 mH ±5 %0,34 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time: 1-2 weeks
 Details
Price on request
VN236-4,7-2
MCoilFERON zero-ohm
14 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VN236-2,7 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
2,7 mH ±5 %0,05 OhmL96xH86xZ84 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
154,90 €
VN236-3,3 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
3,3 mH ±5 %0,06 OhmL96xH86xZ84 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
159,90 €
VN236-3,9 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
3,9 mH ±5 %0,06 OhmL96xH86xZ84 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
164,90 €
VN236-4,7 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
4,7 mH ±5 %0,06 OhmL96xH86xZ84 mm4,37mm² · AWG 11 | 2,36mm
Delivery time for customary quantities: 1-3 working days
Details
169,90 €
VN236-5,6 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
5,6 mH ±5 %0,08 OhmL106xH93xZ87 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
189,90 €
VN236-6,8 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
6,8 mH ±5 %0,09 OhmL106xH93xZ87 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
199,90 €
VN236-8,2 MCoilzero-ohm / wire2.36mm: wire2,36 mm (resin-soaked)
8,2 mH ±5 %0,10 OhmL106xH93xZ87 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
209,90 €
VN236-10 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
10 mH ±5 %0,12 OhmL106xH93xZ87 mm4,37mm² · AWG 11 | 2,36mm
Delivery time: 1-2 weeks
 Details
219,90 €
VN236-12 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
12 mH ±5 %0,13 OhmL106xH93xZ87 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
229,90 €
VN236-15 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
15 mH ±5 %0,15 OhmL130xH115xZ97 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
289,90 €
VN236-18 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
18 mH ±5 %0,17 OhmL130xH115xZ97 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
304,90 €
VN236-22 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
22 mH ±5 %0,19 OhmL130xH115xZ97 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
319,90 €
VN236-27 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
27 mH ±5 %0,21 OhmL130xH115xZ97 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
339,90 €
VN236-33 MCoilFERON zero-ohm: wire2,36 mm (resin-soaked)
33 mH ±5 %0,24 OhmL130xH115xZ97 mm4,37mm² · AWG 11 | 2,36mm
Delivery time:
Details
359,90 €
VN180-8,2_dummy
MCoilFERON zero-ohmN96
15 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VN180-2,2 MCoilFERON zero-ohmN84: wire1.80mm (resin-soaked)
2,2 mH ±5 %0,07 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
104,90 €
VN180-2,7 MCoilFERON zero-ohmN84: wire1.80mm (resin-soaked)
2,7 mH ±5 %0,08 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
106,90 €
VN180-3,3 MCoilFERON zero-ohmN84: wire1.80mm (resin-soaked)
3,3 mH ±5 %0,09 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
109,90 €
VN180-3,9 MCoilFERON zero-ohmN84: wire1.80mm (resin-soaked)
3,9 mH ±5 %0,10 OhmL84xH76xZ70 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
112,90 €
VN180-4,7 MCoilFERON zero-ohmN96: wire1.80mm (resin-soaked)
4,7 mH ±5 %0,11 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
144,90 €
VN180-5,6 MCoilFERON zero-ohmN96: wire1.80mm (resin-soaked)
5,6 mH ±5 %0,12 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
149,90 €
VN180-6,8 MCoilFERON zero-ohmN96: wire1.80mm (resin-soaked)
6,8 mH ±5 %0,13 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
154,90 €
VN180-8,2 MCoilFERON zero-ohmN96: wire1.80mm (resin-soaked)
8,2 mH ±5 %0,15 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time for customary quantities: 1-3 working days
Details
159,90 €
VN180-10 MCoilFERON zero-ohmN96: wire1.80mm (resin-soaked)
10 mH ±5 %0,16 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time for customary quantities: 1-3 working days
Details
164,90 €
VN180-12 MCoilFERON zero-ohmN96: wire1.80mm (resin-soaked)
12 mH ±5 %0,17 OhmL96xH86xZ84 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
169,90 €
VN180-15 MCoilFERON zero-ohmN106: wire1.80mm (resin-soaked)
15 mH ±5 %0,22 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
189,90 €
VN180-18 MCoilFERON zero-ohmN106: wire1.80mm (resin-soaked)
18 mH ±5 %0,25 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
194,90 €
VN180-22 MCoilFERON zero-ohmN106: wire1.80mm (resin-soaked)
22 mH ±5 %0,29 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
199,90 €
VN180-27 MCoilFERON zero-ohmN106: wire1.80mm (resin-soaked)
27 mH ±5 %0,32 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
209,90 €
VN180-33 MCoilFERON zero-ohmN106: wire1.80mm (resin-soaked)
33 mH ±5 %0,34 OhmL106xH93xZ87 mm2,55mm² · AWG 13 | 1,80mm
Delivery time:
Details
219,90 €

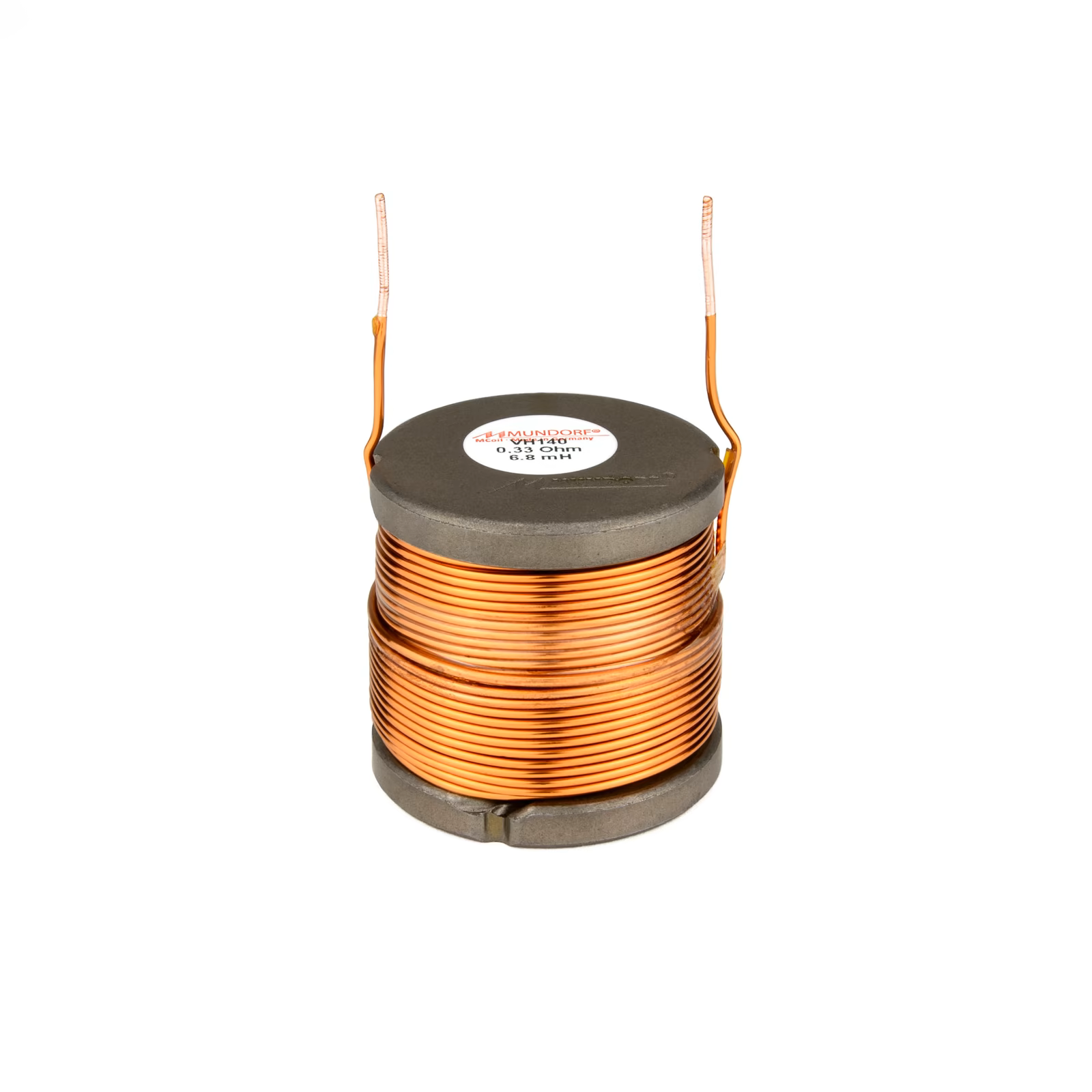

VN140-6,8_dummy
MCoilFERON Zero-OhmN84
14 variants available
Details
Item number
Induktivität
DC Resistance
Dimensions
Wire cross section
Retail Price
VN140-1,0 MCoilFERON Zero-OhmN66: wire 1.40mm (resin-soaked)
1,0 mH ±5 %0,07 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
66,90 €
VN140-1,2 MCoilFERON Zero-OhmN66: wire 1.40mm (resin-soaked)
1,2 mH ±5 %0,08 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
67,90 €
VN140-1,5 MCoilFERON Zero-OhmN66: wire 1.40mm (resin-soaked)
1,5 mH ±5 %0,08 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
68,90 €
VN140-1,8 MCoilFERON Zero-OhmN66: wire 1.40mm (resin-soaked)
1,8 mH ±5 %0,10 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
69,90 €
VN140-2,2 MCoilFERON Zero-OhmN66: wire 1.40mm (resin-soaked)
2,2 mH ±5 %0,12 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
71,90 €
VN140-2,7 MCoilFERON Zero-OhmN66: wire 1.40mm (resin-soaked)
2,7 mH ±5 %0,12 OhmL66xH61xZ63 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
73,90 €
VN140-3,3 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
3,3 mH ±5 %0,14 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
99,90 €
VN140-3,9 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
3,9 mH ±5 %0,16 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
101,90 €
VN140-4,7 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
4,7 mH ±5 %0,17 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
103,90 €
VN140-5,6 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
5,6 mH ±5 %0,19 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
105,90 €
VN140-6,8 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
6,8 mH ±5 %0,21 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time for customary quantities: 1-3 working days
Details
107,90 €
VN140-8,2 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
8,2 mH ±5 %0,23 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
109,90 €
VN140-10 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
10 mH ±5 %0,26 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
112,90 €
VN140-12 MCoilFERON Zero-OhmN84: wire 1.40mm (resin-soaked)
12 mH ±5 %0,29 OhmL84xH76xZ70 mm1,54mm² · AWG 15 | 1,40mm
Delivery time:
Details
115,90 €
