MConnect ACS Angelique®Copper Stranded Wires


Angelique®Copper is a high quality Copper alloy to which a certain amount of silver and a certain amount of gold is added. A copper plus sort of for an audibly plus in musical enjoyment. At a price you would not expect from product a product enriched with SilverGold. Finally, we got Angelique®Copper‘s very copper-silver-gold ratio patented. Alternative alloys with more­ or less silver and/or gold were not as convincing in listening tests. It‘s all about the mixture!

Products based on certain SilverGold alloys have a long tradition at Mundorf. Since years, our SilverGold capacitor series are being used regularly in state-of-the-art projects of international manufacturers and passionate DIY experts. By the way, they also love our SilverGold solder. For a reason.

Unlike electronic components such as capacitors or coils, which process the music signal in its typical frequency range, audio cables and wires as electrical conductors solely serve one purpose: To get the music signal from A to B with as little interference as any possible. Not an easy task.

For electro-physical reasons, the current of the music signal causes the conductormaterial to resonate. One negative effect of these resonances is the resulting loss of energy of power and expression in music signal. Another one is the signal-influencing feedback effect of those resonances on musical details and sound staging. For example with our coils, a solid vacuumizing process reduces these negative effects very effectively. Inside our capacitors and resistors, additional damping materials ensure the greatest possible reduction of unwanted resonances, which vary greatly depending on the conductor medium itself.

In listening comparisons of loudspeaker cables, the Angelique®Copper alloy obviously resonates differently and most probably less strongly than the involved 3 metals individually: Calm from within, transparent and structured down to very smallest audible detail, every sort of music is performed to the point. Its expressiveness and tonal balance are certainly due to the Angelique®Copper alloy itself, which advantageously combines the best tonal characteristics of copper, silver and gold.

Angelique®copper stranded cables and wires can generally be used for audio connections of all kinds. Examples are the production of speaker cables and RCA cables or the ­internal wiring of components and loudspeakers. Furthermore, also power cords for audio devices as well as USB and AV cables from Angelique®Copper provide an audible improvement.
Darstellung
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price

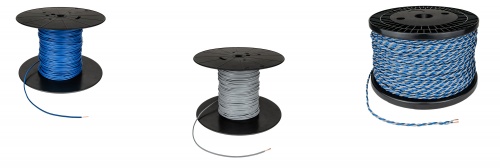

ACS1050GY-00.060 Angelique®Copper stranded 0.50 mm² grey: 60 m, insulated PVC YI8 grey
10x0,25 mm 0,5 mm²6,2 gr/Meter35 mOhm/Meter
Delivery time:
Details
Price on request
ACS1050GY-00.500 Angelique®Copper stranded 0.50 mm² grey: 500 m, insulated PVC YI8 grey
10x0,25 mm 0,5 mm²6,2 gr/Meter35 mOhm/Meter
Delivery time:
Details
Price on request
ACS1050GY-01.500 Angelique®Copper stranded 0.50 mm² grey: 1500 m, insulated PVC YI8 grey
10x0,25 mm 0,5 mm²6,2 gr/Meter35 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS1050BU-00.060 Angelique®Copper stranded 0.50 mm² blue: 60 m, insulated PVC YI8 blue
10x0,25 mm 0,5 mm²6,2 gr/Meter35 mOhm/Meter
Delivery time:
Details
Price on request
ACS1050BU-00.500 Angelique®Copper stranded 0.50 mm² blue: 500 m, insulated PVC YI8 blue
10x0,25 mm 0,5 mm²6,2 gr/Meter35 mOhm/Meter
Delivery time:
Details
Price on request
ACS1050BU-01.500 Angelique®Copper stranded 0.50 mm² blue: 1500 m, insulated PVC YI8 blue
10x0,25 mm 0,5 mm²6,2 gr/Meter35 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS1150GY-00.024 Angelique®Copper stranded 1.50 mm² grey: 24 m, insulated PVC TI1 grey
30x0,25 mm 1,5 mm²19,7 gr/Meter12 mOhm/Meter
Delivery time:
Details
Price on request
ACS1150GY-00.200 Angelique®Copper stranded 1.50 mm² grey: 200 m, insulated PVC TI1 grey
30x0,25 mm 1,5 mm²19,7 gr/Meter12 mOhm/Meter
Delivery time:
Details
Price on request
ACS1150GY-00.500 Angelique®Copper stranded 1.50 mm² grey: 500 m, insulated PVC TI1 grey
30x0,25 mm 1,5 mm²19,7 gr/Meter12 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS1150BU-00.024 Angelique®Copper stranded 1.50 mm² blue: 24 m, insulated PVC TI1 blue
30x0,25 mm 1,5 mm²19,7 gr/Meter12 mOhm/Meter
Delivery time:
Details
Price on request
ACS1150BU-00.200 Angelique®Copper stranded 1.50 mm² blue: 200 m, insulated PVC TI1 blue
30x0,25 mm 1,5 mm²19,7 gr/Meter12 mOhm/Meter
Delivery time:
Details
Price on request
ACS1150BU-00.500 Angelique®Copper stranded 1.50 mm² blue: 500 m, insulated PVC TI1 blue
30x0,25 mm 1,5 mm²19,7 gr/Meter12 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS1250GY-00.012 Angelique®Copper stranded 2.50 mm² grey: 12 m, insulated PVC TI1 grey
50x0,25 mm 2,5 mm²14,5 gr/Meter7 mOhm/Meter
Delivery time:
Details
Price on request
ACS1250GY-00.100 Angelique®Copper stranded 2.50 mm² grey: 100 m, insulated PVC TI1 grey
50x0,25 mm 2,5 mm²14,5 gr/Meter7 mOhm/Meter
Delivery time:
Details
Price on request
ACS1250GY-00.300 Angelique®Copper stranded 2.50 mm² grey: 300 m, insulated PVC TI1 grey
50x0,25 mm 2,5 mm²14,5 gr/Meter7 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS1250BU-00.012 Angelique®Copper stranded 2.50 mm² blue: 12 m, insulated PVC TI1 blue
50x0,25 mm 2,5 mm²14,5 gr/Meter7 mOhm/Meter
Delivery time:
Details
Price on request
ACS1250BU-00.100 Angelique®Copper stranded 2.50 mm² blue: 100 m, insulated PVC TI1 blue
50x0,25 mm 2,5 mm²14,5 gr/Meter7 mOhm/Meter
Delivery time:
Details
Price on request
ACS1250BU-00.300 Angelique®Copper stranded 2.50 mm² blue: 300 m, insulated PVC TI1 blue
50x0,25 mm 2,5 mm²14,5 gr/Meter7 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS2050GY/BU-00.060 Angelique®Copper stranded 2x 0.50 mm² grey / blue: 60 m, insulated PVC YI8 grey / blue
2x 10x0,25 mm 2x 0,5 mm²12,8 gr/Meter2x 35 mOhm/Meter
Delivery time:
Details
Price on request
ACS2050GY/BU-00.500 Angelique®Copper stranded 2x 0.50 mm² grey / blue: 500 m, insulated PVC YI8 grey / blue
2x 10x0,25 mm 2x 0,5 mm²12,8 gr/Meter2x 35 mOhm/Meter
Delivery time:
Details
Price on request
ACS2050GY/BU-00.750 Angelique®Copper stranded 2x 0.50 mm² grey / blue: 750 m, insulated PVC YI8 grey / blue
2x 10x0,25 mm 2x 0,5 mm²12,8 gr/Meter2x 35 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS2150GY/BU-00.024 Angelique®Copper stranded 2x 1.50 mm² grey / blue: 24 m, insulated PVC TI1 grey / blue
2x 30x0,25 mm 2x 1,5 mm²41,4 gr/Meter2x 12 mOhm/Meter
Delivery time:
Details
Price on request
ACS2150GY/BU-00.200 Angelique®Copper stranded 2x 1.50 mm² grey / blue: 200 m, insulated PVC TI1 grey / blue
2x 30x0,25 mm 2x 1,5 mm²41,4 gr/Meter2x 12 mOhm/Meter
Delivery time:
Details
Price on request
ACS2150GY/BU-00.250 Angelique®Copper stranded 2x 1.50 mm² grey / blue: 250 m, insulated PVC TI1 grey / blue
2x 30x0,25 mm 2x 1,5 mm²41,4 gr/Meter2x 12 mOhm/Meter
Delivery time:
Details
Price on request
Item number
Conductor Diameter
Cross section
Specific Weight (g/m)
DC Resistance
Retail Price
ACS2250GY/BU-00.012 Angelique®Copper stranded 2x 2.50 mm² grey / blue: 12 m, insulated PVC TI1 grey / blue
2x 50x0,25 mm 2x 2,5 mm²63,7 gr/Meter2x 7 mOhm/Meter
Delivery time:
Details
Price on request
ACS2250GY/BU-00.100 Angelique®Copper stranded 2x 2.50 mm² grey / blue: 100 m, insulated PVC TI1 grey / blue
2x 50x0,25 mm 2x 2,5 mm²63,7 gr/Meter2x 7 mOhm/Meter
Delivery time:
Details
Price on request
ACS2250GY/BU-00.150 Angelique®Copper stranded 2x 2.50 mm² grey / blue: 150 m, insulated PVC TI1 grey / blue
2x 50x0,25 mm 2x 2,5 mm²63,7 gr/Meter2x 7 mOhm/Meter
Delivery time:
Details
Price on request
