MCoil VLCU · Copper Foil Paper

MCoil VLCU Paper Copper Film Inductors. Ultra-soft Abacá Esparto special paper as a dielectric medium dip-impregnated with viscoplastic insulation resin.

High mechanical damping of the coil-vibrations. Almost free of microphonic effect, even without a housing. Extremely calm acoustic pattern and the finest micro-dynamics.
Darstellung
neu
MCoil VLCU9 aircore
28 variants available
Details
Item number
Inductivity
DC Resistance
Dimensions
Wire cross section
Retail Price
VLCU9-0,10 MCoilAirCore and Foil: PureCopper.PaperResin
0,10 mH0,03 OhmØ42xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
69,90 €
VLCU9-0,12 MCoilAirCore and Foil: PureCopper.PaperResin
0,12 mH0,04 OhmØ44xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
74,90 €
VLCU9-0,15 MCoilAirCore and Foil: PureCopper.PaperResin
0,15 mH0,04 OhmØ47xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
79,90 €
VLCU9-0,18 MCoilAirCore and Foil: PureCopper.PaperResin
0,18 mH0,04 OhmØ49xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
84,90 €
VLCU9-0,22 MCoilAirCore and Foil: PureCopper.PaperResin
0,22 mH0,05 OhmØ52xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
89,90 €
VLCU9-0,27 MCoilAirCore and Foil: PureCopper.PaperResin
0,27 mH0,05 OhmØ55xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
99,90 €
VLCU9-0,33 MCoilAirCore and Foil: PureCopper.PaperResin
0,33 mH0,06 OhmØ57xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time for customary quantities: 1-3 working days
Details
109,90 €
VLCU9-0,39 MCoilAirCore and Foil: PureCopper.PaperResin
0,39 mH0,07 OhmØ60xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
119,90 €
VLCU9-0,47 MCoilAirCore and Foil: PureCopper.PaperResin
0,47 mH0,07 OhmØ63xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time for customary quantities: 1-3 working days
Details
134,90 €
VLCU9-0,56 MCoilAirCore and Foil: PureCopper.PaperResin
0,56 mH0,08 OhmØ67xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time for customary quantities: 1-3 working days
Details
149,90 €
VLCU9-0,68 MCoilAirCore and Foil: PureCopper.PaperResin
0,68 mH0,09 OhmØ70xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
164,90 €
VLCU9-0,82 MCoilAirCore and Foil: PureCopper.PaperResin
0,82 mH0,10 OhmØ74xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
179,90 €
VLCU9-1,0 MCoilAirCore and Foil: PureCopper.PaperResin
1,0 mH0,11 OhmØ78xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
199,90 €
VLCU9-1,2 MCoilAirCore and Foil: PureCopper.PaperResin
1,2 mH0,12 OhmØ82xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
219,90 €
VLCU9-1,5 MCoilAirCore and Foil: PureCopper.PaperResin
1,5 mH0,13 OhmØ87xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
239,90 €
VLCU9-1,8 MCoilAirCore and Foil: PureCopper.PaperResin
1,8 mH0,14 OhmØ92xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
269,90 €
VLCU9-2,2 MCoilAirCore and Foil: PureCopper.PaperResin
2,2 mH0,16 OhmØ97xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time for customary quantities: 1-3 working days
Details
299,90 €
VLCU9-2,7 MCoilAirCore and Foil: PureCopper.PaperResin
2,7 mH0,18 OhmØ103xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
339,90 €
VLCU9-3,3 MCoilAirCore and Foil: PureCopper.PaperResin
3,3 mH0,20 OhmØ109xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
379,90 €
VLCU9-3,9 MCoilAirCore and Foil: PureCopper.PaperResin
3,9 mH0,23 OhmØ115xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
419,90 €
VLCU9-4,7 MCoil VLCU9 aircore: PureCopper.PaperResin
4,7 mH0,25 OhmØ121xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
459,90 €
VLCU9-5,6 MCoilAirCore and Foil: PureCopper.PaperResin
5,6 mH0,28 OhmØ127xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
499,90 €
VLCU9-6,8 MCoilAirCore and Foil: PureCopper.PaperResin
6,8 mH0,30 OhmØ134xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
549,90 €
VLCU9-8,2 MCoilAirCore and Foil: PureCopper.PaperResin
8,2 mH0,34 OhmØ142xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
599,90 €
VLCU9-10 MCoilAirCore and Foil: PureCopper.PaperResin
10 mH0,38 OhmØ155xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
699,90 €
VLCU9-12 MCoilAirCore and Foil: PureCopper.PaperResin
12 mH0,42 OhmØ163xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
799,90 €
VLCU9-15 MCoilAirCore and Foil: PureCopper.PaperResin
15 mH0,48 OhmØ174xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
899,90 €
VLCU9-18 MCoilAirCore and Foil: PureCopper.PaperResin
18 mH0,53 OhmØ184xH77 mm7,00mm² · AWG 9 | 2,99mm
Delivery time:
Details
999,90 €

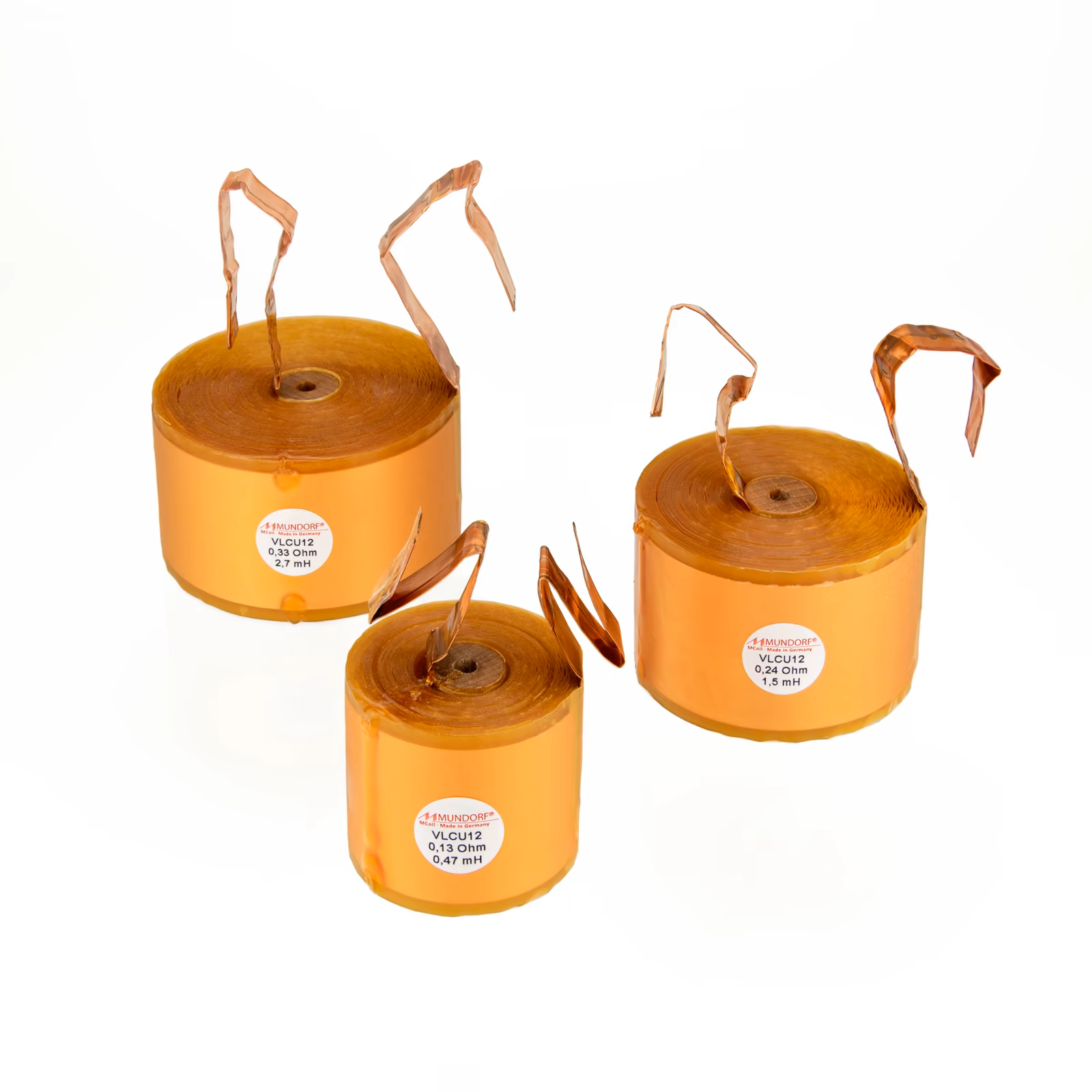

VLCU12
MCoil VLCU12 aircore
25 variants available
Details
Item number
Inductivity
DC Resistance
Dimensions
Wire cross section
Retail Price
VLCU12-0,10 MCoilAirCore and Foil: PureCopper.PaperResin
0,10 mH0,06 OhmØ40xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
39,90 €
VLCU12-0,12 MCoilAirCore and Foil: PureCopper.PaperResin
0,12 mH0,06 OhmØ41xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
42,90 €
VLCU12-0,15 MCoilAirCore and Foil: PureCopper.PaperResin
0,15 mH0,07 OhmØ44xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
45,90 €
VLCU12-0,18 MCoilAirCore and Foil: PureCopper.PaperResin
0,18 mH0,08 OhmØ45xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
49,90 €
VLCU12-0,22 MCoilAirCore and Foil: PureCopper.PaperResin
0,22 mH0,09 OhmØ47xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
54,90 €
VLCU12-0,27 MCoilAirCore and Foil: PureCopper.PaperResin
0,27 mH0,09 OhmØ50xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
59,90 €
VLCU12-0,33 MCoilAirCore and Foil: PureCopper.PaperResin
0,33 mH0,1 OhmØ53xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
64,90 €
VLCU12-0,39 MCoilAirCore and Foil: PureCopper.PaperResin
0,39 mH0,11 OhmØ55xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
69,90 €
VLCU12-0,47 MCoilAirCore and Foil: PureCopper.PaperResin
0,47 mH0,13 OhmØ58xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
74,90 €
VLCU12-0,56 MCoilAirCore and Foil: PureCopper.PaperResin
0,56 mH0,14 OhmØ60xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
79,90 €
VLCU12-0,68 MCoilAirCore and Foil: PureCopper.PaperResin
0,68 mH0,16 OhmØ63xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
84,90 €
VLCU12-0,82 MCoilAirCore and Foil: PureCopper.PaperResin
0,82 mH0,17 OhmØ67xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
89,90 €
VLCU12-1,2 MCoilAirCore and Foil: PureCopper.PaperResin
1,2 mH0,21 OhmØ75xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
109,90 €
VLCU12-1,5 MCoilAirCore and Foil: PureCopper.PaperResin
1,5 mH0,24 OhmØ78xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
119,90 €
VLCU12-1,8 MCoilAirCore and Foil: PureCopper.PaperResin
1,8 mH0,26 OhmØ82xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
129,90 €
VLCU12-2,7 MCoilAirCore and Foil: PureCopper.PaperResin
2,7 mH0,33 OhmØ92xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time for customary quantities: 1-3 working days
Details
159,90 €
VLCU12-3,3 MCoilAirCore and Foil: PureCopper.PaperResin
3,3 mH0,37 OhmØ98xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
179,90 €
VLCU12-3,9 MCoilAirCore and Foil: PureCopper.PaperResin
3,9 mH0,41 OhmØ103xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
199,90 €
VLCU12-4,7 MCoil VLCU12 aircore: PureCopper.PaperResin
4,7 mH0,46 OhmØ108xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
219,90 €
VLCU12-6,8 MCoilAirCore and Foil: PureCopper.PaperResin
6,8 mH0,56 OhmØ120xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
269,90 €
VLCU12-8,2 MCoilAirCore and Foil: PureCopper.PaperResin
8,2 mH0,63 OhmØ126xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
299,90 €
VLCU12-10 MCoilAirCore and Foil: PureCopper.PaperResin
10 mH0,71 OhmØ134xH53 mm3,08mm² · AWG 12 | 1,98mm
Delivery time:
Details
349,90 €

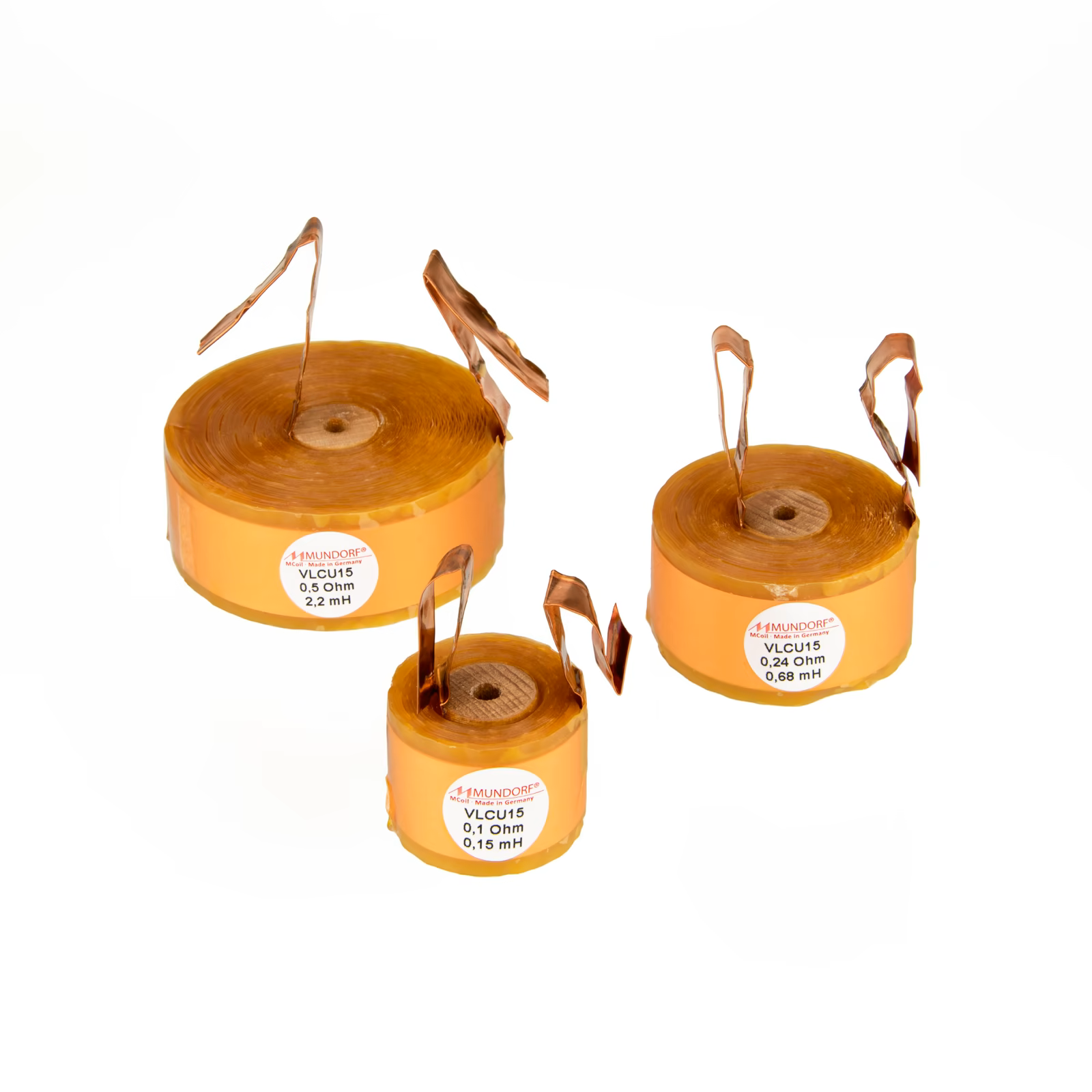

VLCU15
MCoil VLCU15 AirCore
27 variants available
Details
Item number
Inductivity
DC Resistance
Dimensions
Retail Price
VLCU15-0,10 MCoilAirCore and Foil: PureCopper.PaperResin
0,10 mH0,08 OhmØ37xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
24,90 €
VLCU15-0,12 MCoilAirCore and Foil: PureCopper.PaperResin
0,12 mH0,09 OhmØ38xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
25,90 €
VLCU15-0,15 MCoilAirCore and Foil: PureCopper.PaperResin
0,15 mH0,1 OhmØ41xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
27,90 €
VLCU15-0,18 MCoilAirCore and Foil: PureCopper.PaperResin
0,18 mH0,12 OhmØ42xH30 mmLuftspulen
Delivery time:
Details
29,90 €
VLCU15-0,22 MCoilAirCore and Foil: PureCopper.PaperResin
0,22 mH0,13 OhmØ42xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
31,90 €
VLCU15-0,27 MCoilAirCore and Foil: PureCopper.PaperResin
0,27 mH0,14 OhmØ46xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
33,90 €
VLCU15-0,33 MCoilAirCore and Foil: PureCopper.PaperResin
0,33 mH0,16 OhmØ48xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
36,90 €
VLCU15-0,39 MCoilAirCore and Foil: PureCopper.PaperResin
0,39 mH0,18 OhmØ50xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
39,90 €
VLCU15-0,56 MCoilAirCore and Foil: PureCopper.PaperResin
0,56 mH0,22 OhmØ55xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
45,90 €
VLCU15-0,68 MCoilAirCore and Foil: PureCopper.PaperResin
0,68 mH0,24 OhmØ57xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
48,90 €
VLCU15-0,82 MCoilAirCore and Foil: PureCopper.PaperResin
0,82 mH0,27 OhmØ60xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
51,90 €
VLCU15-1,0 MCoilAirCore and Foil: PureCopper.PaperResin
1,0 mH0,31 OhmØ63xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
54,90 €
VLCU15-1,2 MCoilAirCore and Foil: PureCopper.PaperResin
1,2 mH0,34 OhmØ66xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
59,90 €
VLCU15-1,5 MCoilAirCore and Foil: PureCopper.PaperResin
1,5 mH0,39 OhmØ70xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
64,90 €
VLCU15-1,8 MCoilAirCore and Foil: PureCopper.PaperResin
1,8 mH0,44 OhmØ75xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
69,90 €
VLCU15-2,7 MCoilAirCore and Foil: PureCopper.PaperResin
2,7 mH0,56 OhmØ83xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
79,90 €
VLCU15-3,3 MCoilAirCore and Foil: PureCopper.PaperResin
3,3 mH0,63 OhmØ88xH30 mmLuftspulen
Delivery time:
Details
85,90 €
VLCU15-3,9 MCoilAirCore and Foil: PureCopper.PaperResin
3,9 mH0,7 OhmØ93xH30 mmLuftspulen
Delivery time:
Details
92,90 €
VLCU15-4,7 MCoil VLCU15 AirCore: PureCopper.PaperResin
4,7 mH0,78 OhmØ97xH30 mmLuftspulen
Delivery time:
Details
99,90 €
VLCU15-5,6 MCoilAirCore and Foil: PureCopper.PaperResin
5,6 mH0,86 OhmØ102xH30 mmLuftspulen
Delivery time:
Details
109,90 €
VLCU15-6,8 MCoilAirCore and Foil: PureCopper.PaperResin
6,8 mH0,96 OhmØ108xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
119,90 €
VLCU15-8,2 MCoilAirCore and Foil: PureCopper.PaperResin
8,2 mH1,08 OhmØ115xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
134,90 €
VLCU15-10 MCoilAirCore and Foil: PureCopper.PaperResin
10 mH1,23 OhmØ127xH30 mmLuftspulen
Delivery time for customary quantities: 1-3 working days
Details
149,90 €
VLCU15-12 MCoilAirCore and Foil: PureCopper.PaperResin
12 mH1,31 OhmØ132xH30 mmLuftspulen
Delivery time:
Details
Price on request
VLCU15-15 MCoilAirCore and Foil: PureCopper.PaperResin
15 mH1,64 OhmØ140xH30 mmLuftspulen
Delivery time:
Details
Price on request

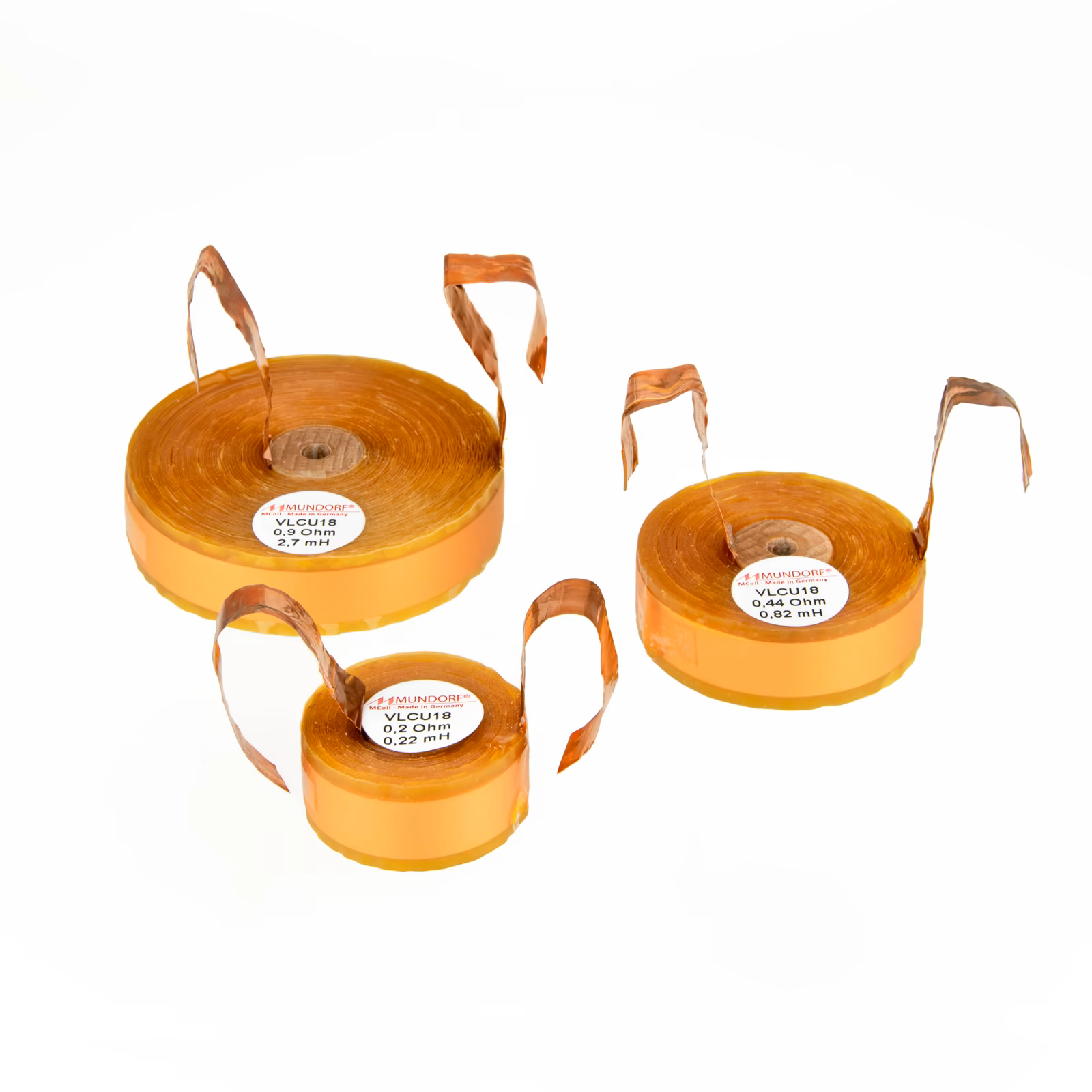

VLCU18
MCoil VLCU18 aircore
25 variants available
Details
Item number
Inductivity
DC Resistance
Dimensions
Wire cross section
Retail Price
VLCU18-0,10 MCoilAirCore and Foil: PureCopper.PaperResin
0,10 mH0,13 OhmØ34xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
18,90 €
VLCU18-0,12 MCoilAirCore and Foil: PureCopper.PaperResin
0,12 mH0,14 OhmØ35xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
19,90 €
VLCU18-0,15 MCoilAirCore and Foil: PureCopper.PaperResin
0,15 mH0,16 OhmØ37xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
20,90 €
VLCU18-0,18 MCoilAirCore and Foil: PureCopper.PaperResin
0,18 mH0,18 OhmØ38xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
21,90 €
VLCU18-0,27 MCoilAirCore and Foil: PureCopper.PaperResin
0,27 mH0,22 OhmØ42xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time:
Details
23,90 €
VLCU18-0,33 MCoilAirCore and Foil: PureCopper.PaperResin
0,33 mH0,25 OhmØ44xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
25,90 €
VLCU18-0,39 MCoilAirCore and Foil: PureCopper.PaperResin
0,39 mH0,28 OhmØ45xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
27,90 €
VLCU18-0,56 MCoilAirCore and Foil: PureCopper.PaperResin
0,56 mH0,35 OhmØ50xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
31,90 €
VLCU18-0,82 MCoilAirCore and Foil: PureCopper.PaperResin
0,82 mH0,44 OhmØ56xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
35,90 €
VLCU18-1,2 MCoilAirCore and Foil: PureCopper.PaperResin
1,2 mH0,56 OhmØ60xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
39,90 €
VLCU18-1,5 MCoilAirCore and Foil: PureCopper.PaperResin
1,5 mH0,65 OhmØ64xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
42,90 €
VLCU18-1,8 MCoilAirCore and Foil: PureCopper.PaperResin
1,8 mH0,7 OhmØ68xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time for customary quantities: 1-3 working days
Details
45,90 €
VLCU18-4,7 MCoil VLCU18 aircore: PureCopper.PaperResin
4,7 mH1,30 OhmØ91xH18 mm0,81mm² · AWG 18 | 1,02mm
Delivery time:
Details
69,90 €
